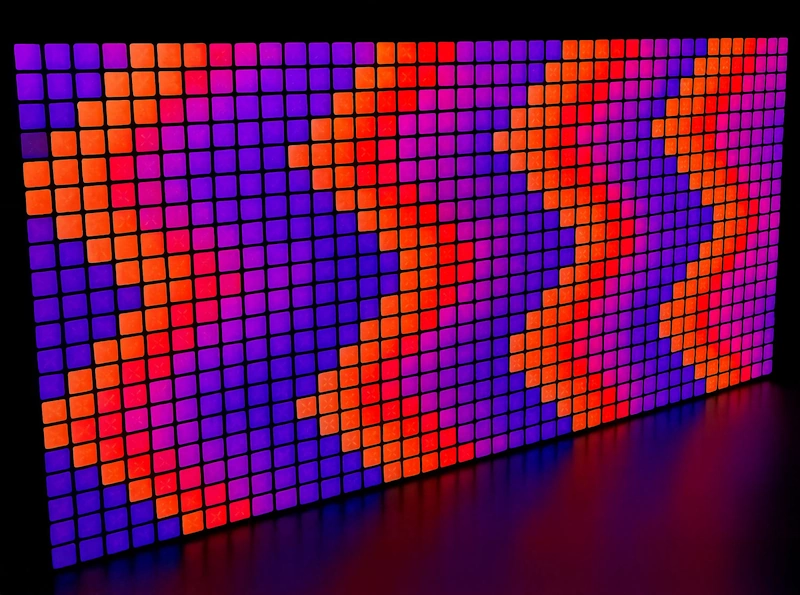

Driven by 500 high-performance SMD LEDs, the Citronic Matrix Pro delivers an impressive spectrum of vivid colour washes and dynamic motion effects. Built-in automatic, sound-responsive and static programmes can be selected directly from the rear digital display, while advanced control is available via Art-Net or DMX, offering 3, 5, 20 or 300 channel configurations.
With Art-Net functionality, multiple Matrix Pro fixtures can be networked together and operated as one cohesive pixel-mapped system. This enables fluid animations, eye-catching visual effects and scalable control using standard network infrastructure. Designed to work seamlessly with industry-standard lighting desks and software, the Matrix Pro integrates effortlessly into professional setups and can be expanded as production demands increase.
For dependable performance, the unit features intelligent fan management and thermal safeguarding to maintain stable operation during prolonged use. Professional twist-and-lock power connectors enhance durability and secure connectivity. Supplied mounting clamps allow installation in any orientation, and integrated linking points on all four sides make it quick and simple to connect multiple panels together, forming bold, immersive colour walls for stages, venues and large-scale events.
Citronic Matrix Pro Specification:
- Equipped with 500 high-output SMD5050 3-in-1 RGB LEDs, delivering a wide variety of vibrant colour washes and dynamic moving effects
- Supports DMX operation in 3, 5, 20 or 300 channel modes for flexible programming options
- Art-Net compatibility enables straightforward pixel mapping and network-based control
- Built-in Auto, Static and Sound Active programmes can be customised with adjustable speed, strobe and sensitivity settings

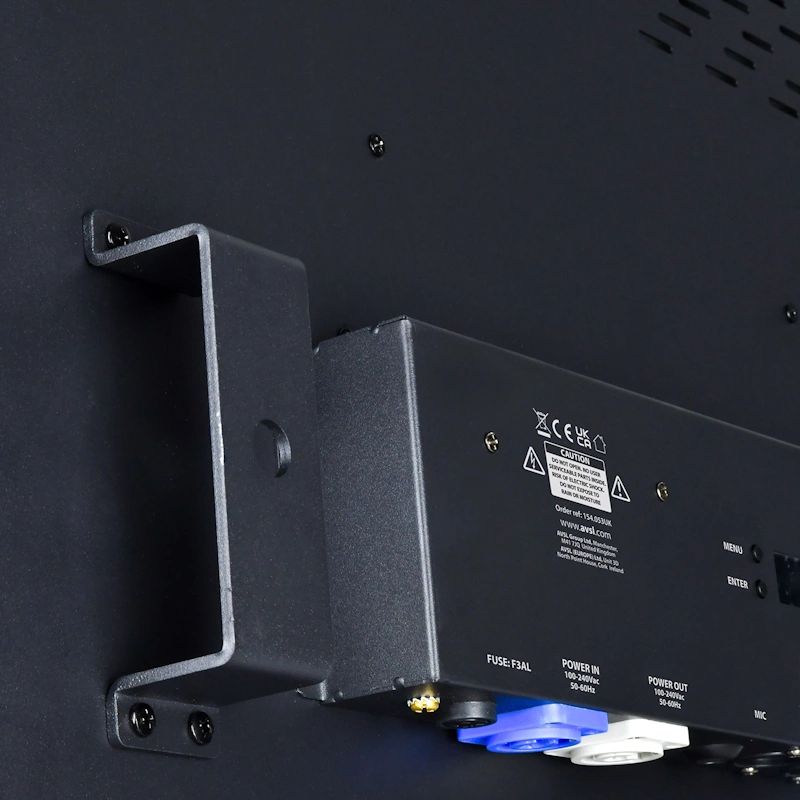

- Professional twist-and-lock power input and output connections ensure secure and reliable linking
- Intelligent fan management and thermal protection systems maintain stable performance during extended operation

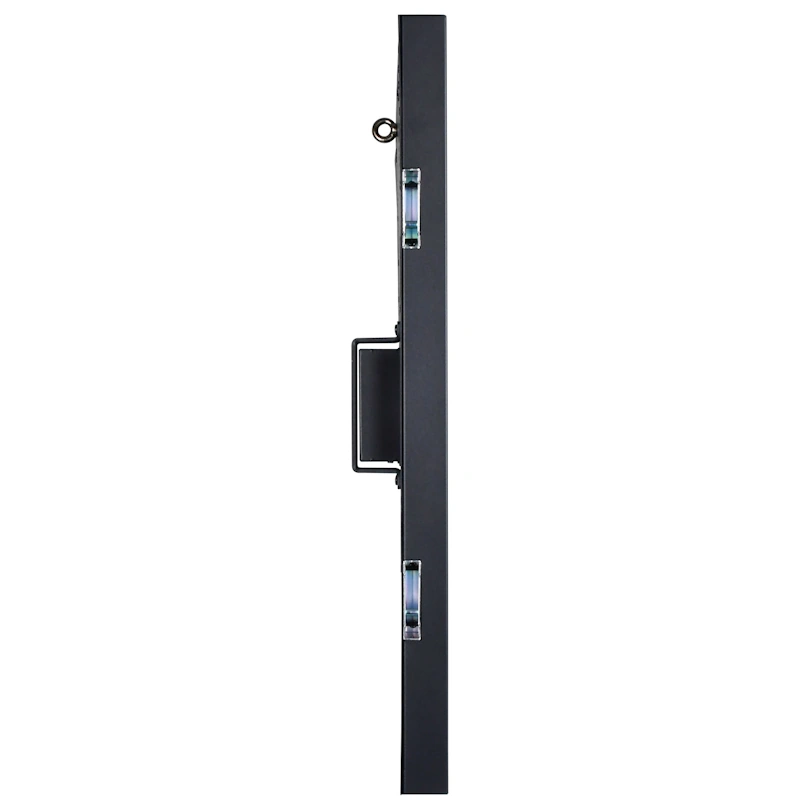

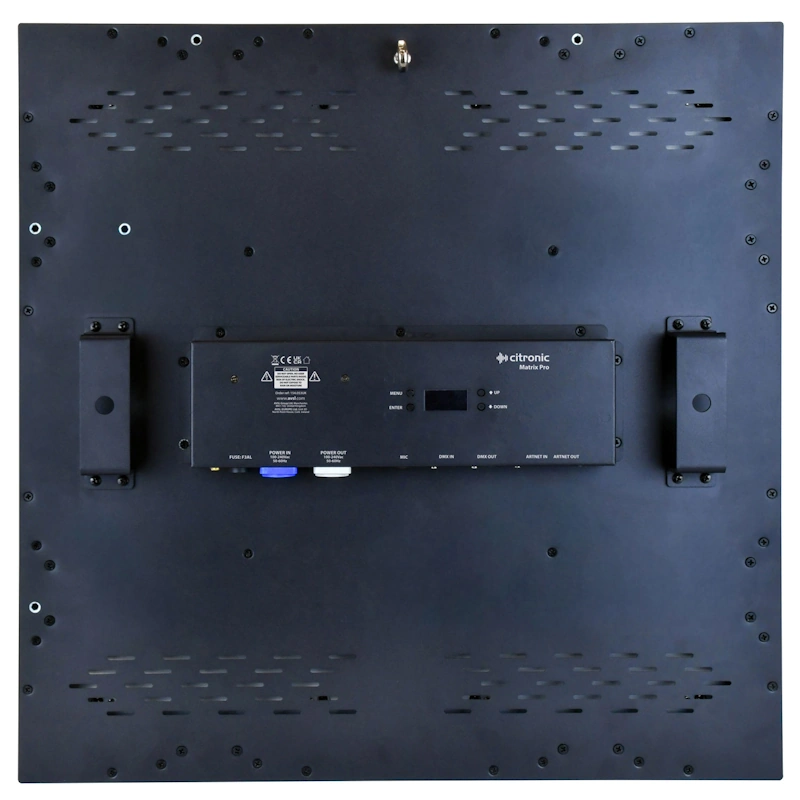

- Designed for truss mounting using the supplied vertical mounting brackets or the integrated rear brackets
- Multiple units can be linked both horizontally and vertically via integrated connection points
- Up to 10 units can be safely suspended in a vertical configuration
- Utilises 500 x SMD 5050 3-in-1 RGB LEDs rated at 0.2W each
- Lighting effects include full RGB colour mixing, smooth linear dimming from 0–100%, and strobe effects adjustable up to 25 flashes per second
- Operating modes include Auto, Sound, Static, DMX, Art-Net and Master/Slave

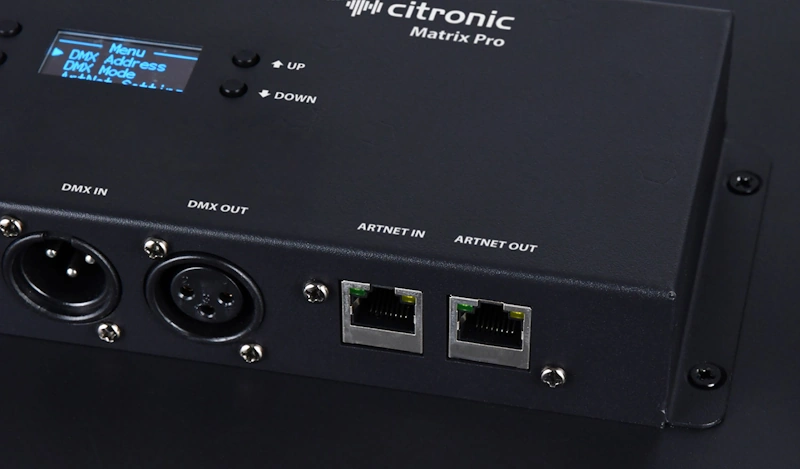

- DMX connectivity via 3-pin input/output or RJ45 input/output for Art-Net
- Power supply: 110–240V AC, 50/60Hz
- Power consumption: 120W
- Dimensions: 70mm x 550mm x 550mm
Click here to view the pdf user manual on the Citronic Matrix Pro
