Citronic MFZ160-RGBW 160W Mini Fresnel Zoom RGBW LED Stage Light

Perfect for environments that demand soft, even washes at close range, this MFZ160-RGBW, 160W Mini Fresnel stage light combines compact design with powerful output. It is equipped with four high-intensity RGBW LEDs, delivering rich colour mixing along with smooth, consistent coverage.

The fixture produces a stable, flicker-free beam, making it suitable for both live performance and video applications. A manual zoom function allows the beam angle to be adjusted between 30° and 58°, while the integrated barn doors enable precise shaping and spill control to suit the space.

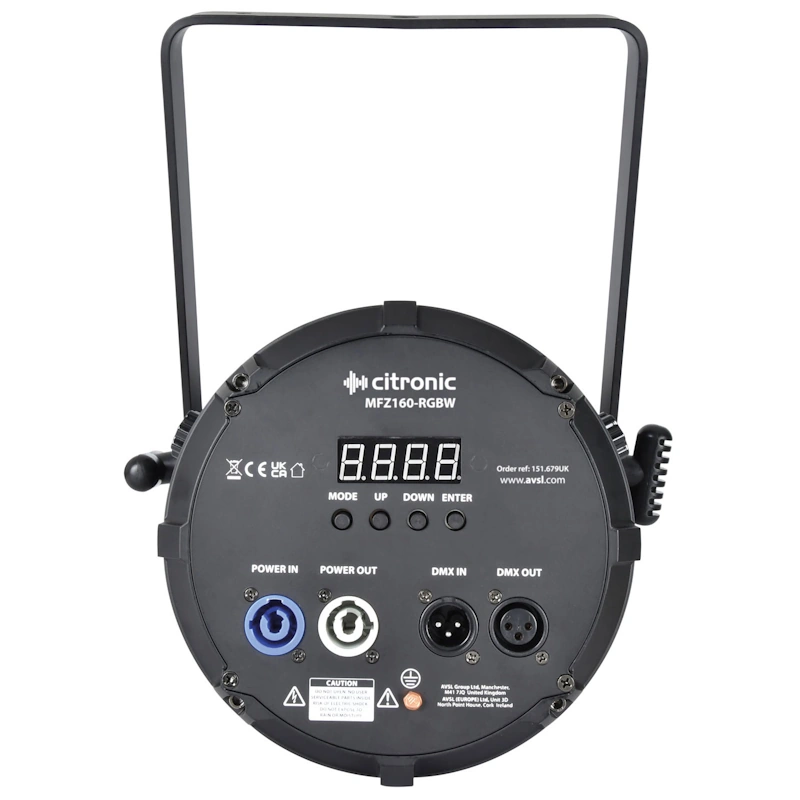

Built-in Auto, Sound Active and Static modes can be accessed via the rear digital control panel, or the unit can be operated through 4 or 8 channel DMX for greater programming flexibility. A robust mounting bracket ensures secure installation, and professional twist-and-lock power connectors provide reliable connectivity and a clean, stage-ready finish.

Citronic 160W Mini Fresnel LED RGB Stage Light Specification:

• Fitted with four high-output 40W RGBW COB LEDs for vibrant colour mixing and strong, even illumination
• Manual zoom function enables beam angle adjustment from 30° to 58°, effective at distances up to 5 metres
• Flicker-free output suitable for video and broadcast environments
• Built-in Auto, Sound Active and Static programmes for standalone use
• DMX-512 compatible with selectable 4 or 8 channel operation
• Professional twist-and-lock power input and output connections for secure and reliable linking
• Ideal for producing smooth, consistent washes over short throw distances
• Supplied with integrated barn doors for accurate beam shaping and spill control
• Power supply: 100–240V AC, 50/60Hz
• Power consumption: 180W
• LED configuration: 4 x 40W RGBW COB LEDs
• Effective coverage distance: up to 5m
• Adjustable beam angle range: 30°–58°
• Operating modes: Auto, Sound, DMX and Master/Slave
• DMX channels: 4 or 8CH
• Connections: Power in/out (twist and lock) and 3-pin XLR DMX in/out
• Dimensions: 463 x 340 x 260mm

Click here to view the pdf user manual on the Citronic Mini Fresnel RGBW LED Stage Lights
